ALOW-T69952
EVOLVE - Series LED Bar Control Panel
EVOLVE - series LED bar control panel.
- Model
- EVOLVE PANEL
$45
Only 2 left
Five-switch Panel ON-OFF;(ON) OFF

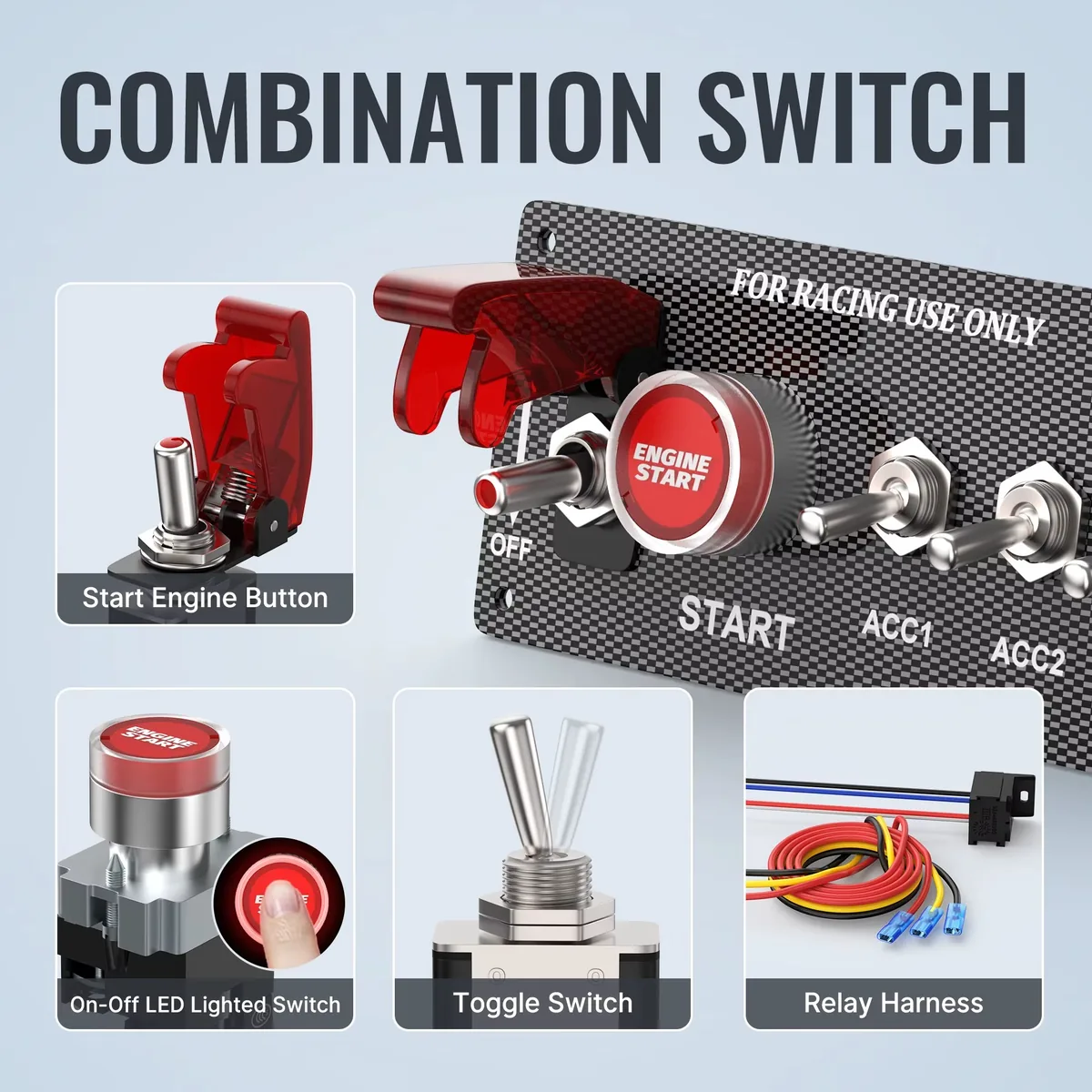

Control panel with 4 latching mechanical switches, one momentary switch, a safety cover and an indicator lamp.
$31
Only 2 left
Ships within one working day
- Free courier delivery over $150, otherwise $6. Collection is always free.
- 24-month warranty on the part, and on our labour if we fit it.
- We fit this in our own bay. Book installation.
About this part
Control panel with 4 latching mechanical switches, one momentary switch, a safety cover and an indicator lamp.
| Model | PN-SAC5 |
|---|---|
| Control channels | 5 |
| Channel power ratings | Port 1: 10A; Port 2: 10A; Port 3: 10A; Port 4: 10A |
| Power | MAX - 480W |
| Control type | Mechanical |
| Operating voltage | DC 12V-24V |

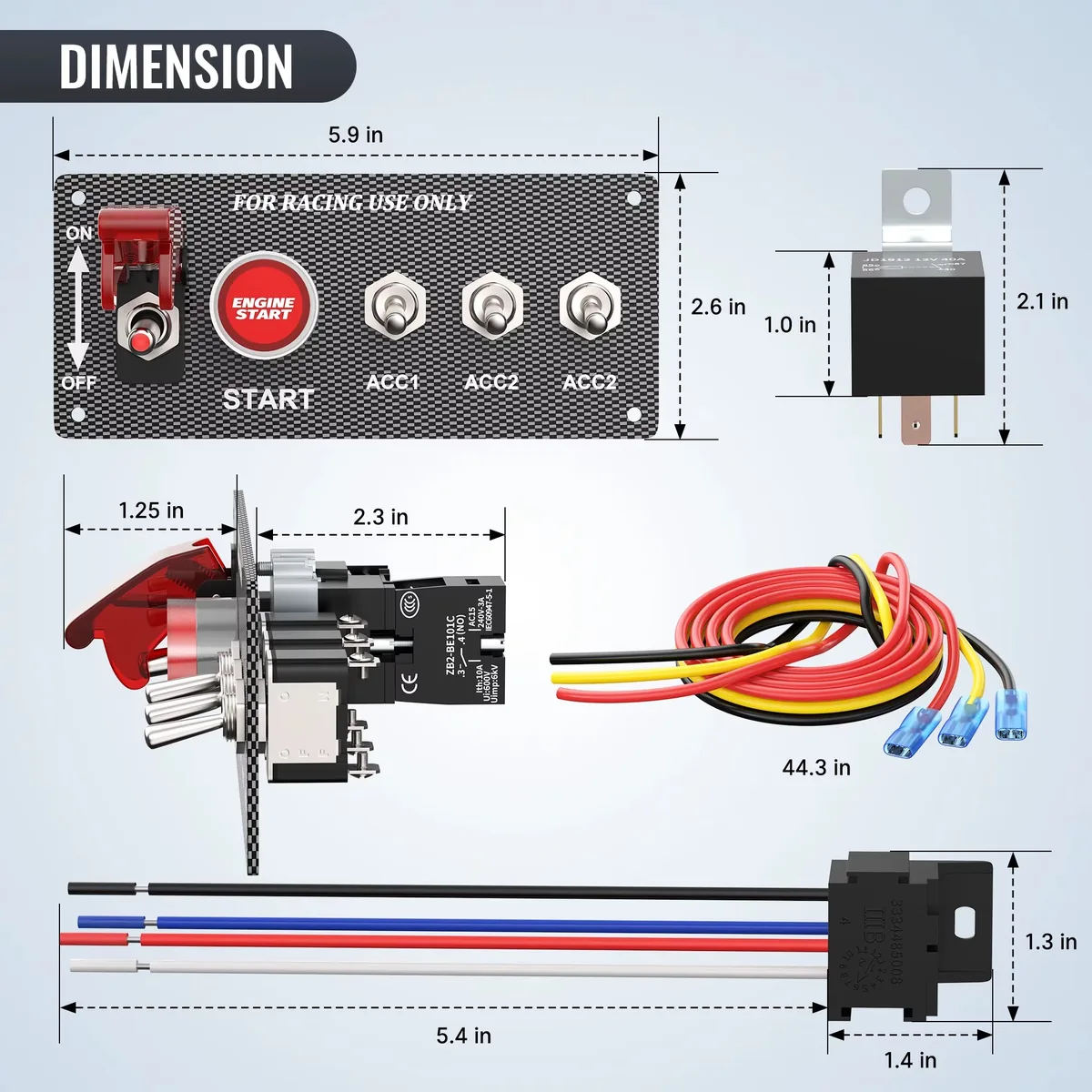

| Panel size | 150x66mm |
